A-EAYK7 — Countertop Backsplash Junction at Wall Assembly

Architectural · A-EAYK7

Countertop Backsplash Junction at Wall Assembly

Materials

Elements

Walls Millwork / Casework

About this detail

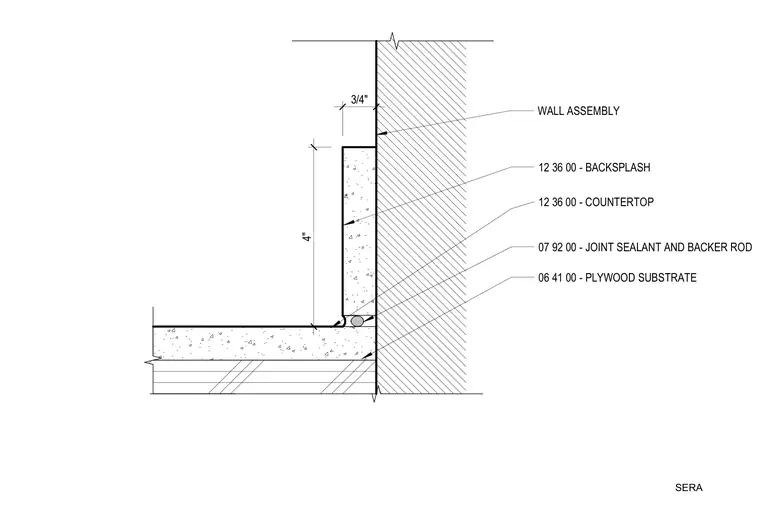

A four-inch backsplash meets the vertical wall assembly above the countertop surface, which is supported by a plywood substrate. Joint sealant and a backer rod seal the internal horizontal and vertical corners where the components meet. Dimensions indicate a three-quarter-inch projection or clearance from the wall assembly.

WALL ASSEMBLY 07 92 00 - JOINT SEALANT AND BACKER ROD 12 36 00 - COUNTERTOP 4" 3/4" 06 41 00 - PLYWOOD SUBSTRATE SERA 12 36 00 - BACKSPLASH
