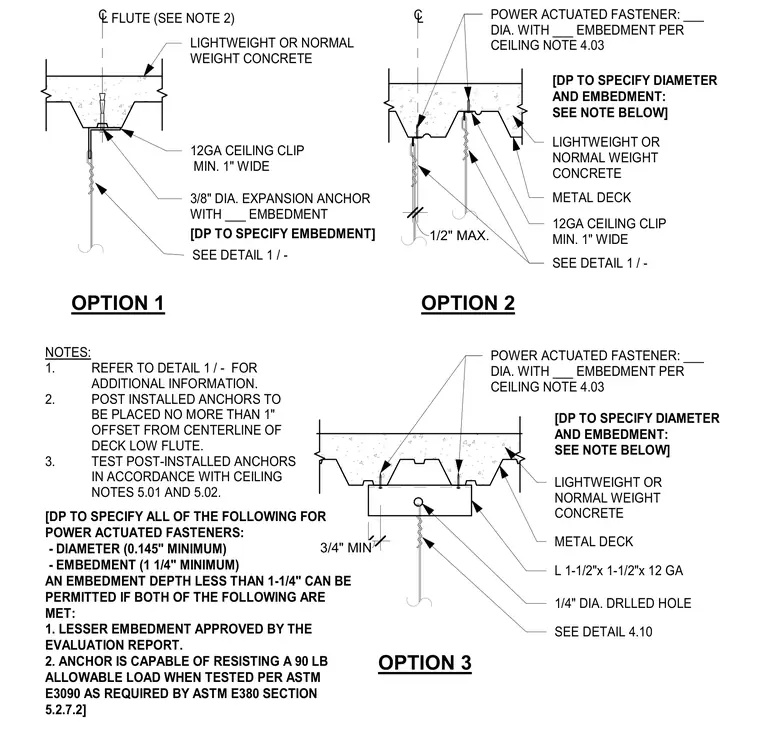

Option 1 features a three-eighths-inch diameter expansion anchor securing a twelve-gauge ceiling clip with a minimum width of one inch into the low flute of a metal deck supporting lightweight or normal-weight concrete. Option 2 utilizes a power-actuated fastener to secure the twelve-gauge ceiling clip directly into the concrete-filled metal deck. Option 3 employs a one-and-one-half-inch by one-and-one-half-inch by twelve-gauge steel angle spanning the low flute, fastened with power-actuated fasteners on each side and drilled with a one-quarter-inch hole to support the hanger wire. Post-installed anchors must be placed no more than one inch off-center from the deck low flute and tested according to project ceiling notes. Design professionals must specify fastener diameters and embedment depths per evaluation reports and load testing standards.
NOTES: 1. REFER TO DETAIL 1 / - FOR ADDITIONAL INFORMATION. 2. POST INSTALLED ANCHORS TO BE PLACED NO MORE THAN 1" OFFSET FROM CENTERLINE OF DECK LOW FLUTE. 3. TEST POST-INSTALLED ANCHORS IN ACCORDANCE WITH CEILING NOTES 5.01 AND 5.02. L FLUTE (SEE NOTE 2) LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE 12GA CEILING CLIP MIN. 1" WIDE 3/8" DIA. EXPANSION ANCHOR WITH ___ EMBEDMENT OPTION 1 C OPTION 2 METAL DECK METAL DECK POWER ACTUATED FASTENER: ___ DIA. WITH ___ EMBEDMENT PER CEILING NOTE 4.03 L 1-1/2"x 1-1/2"x 12 GA OPTION 3 LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE 12GA CEILING CLIP MIN. 1" WIDE 3/4" MIN [DP TO SPECIFY EMBEDMENT] SEE DETAIL 4.10 SEE DETAIL 1 / - SEE DETAIL 1 / - [DP TO SPECIFY ALL OF THE FOLLOWING FOR POWER ACTUATED FASTENERS: - DIAMETER (0.145" MINIMUM) - EMBEDMENT (1 1/4" MINIMUM) AN EMBEDMENT DEPTH LESS THAN 1-1/4" CAN BE PERMITTED IF BOTH OF THE FOLLOWING ARE MET: 1. LESSER EMBEDMENT APPROVED BY THE EVALUATION REPORT. 2. ANCHOR IS CAPABLE OF RESISTING A 90 LB ALLOWABLE LOAD WHEN TESTED PER ASTM E3090 AS REQUIRED BY ASTM E380 SECTION 5.2.7.2] POWER ACTUATED FASTENER: ___ DIA. WITH ___ EMBEDMENT PER CEILING NOTE 4.03 [DP TO SPECIFY DIAMETER AND EMBEDMENT: SEE NOTE BELOW] [DP TO SPECIFY DIAMETER AND EMBEDMENT: SEE NOTE BELOW] LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE 1/4" DIA. DRLLED HOLE 1/2" MAX. CL
