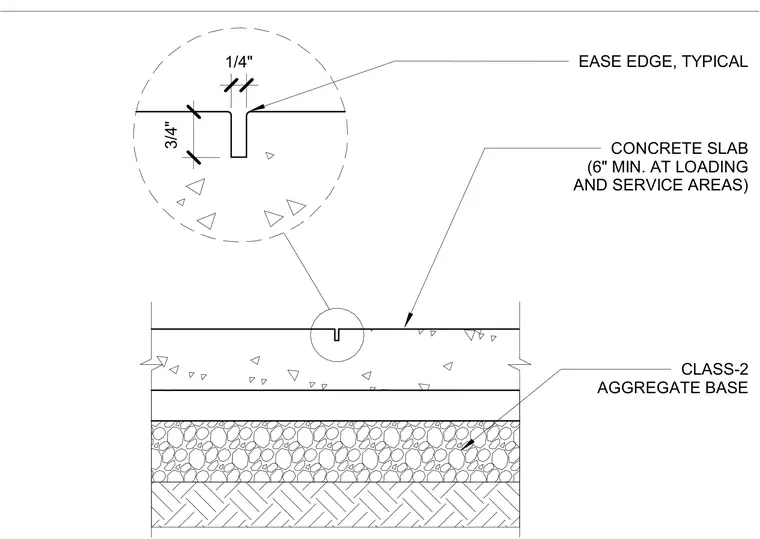

A concrete slab with a minimum thickness of six inches at loading and service areas rests upon a Class-2 aggregate base. A tooled control joint is formed in the top surface of the concrete slab with a width of one-quarter inch and a depth of three-quarters inch, featuring typical eased edges.
CONCRETE SLAB (6" MIN. AT LOADING AND SERVICE AREAS) CLASS-2 AGGREGATE BASE EASE EDGE, TYPICAL 1/4" 3/4"
