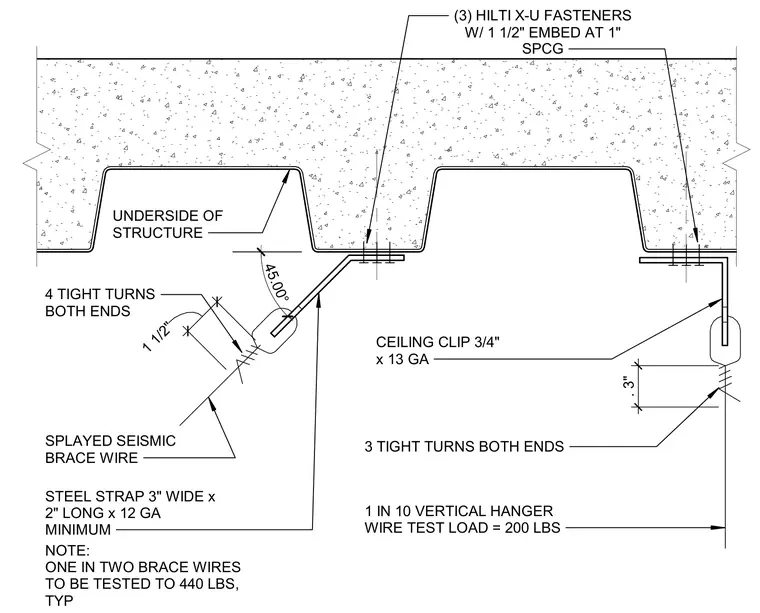

The splayed seismic brace wire is secured to the underside of the concrete structure using a minimum twelve gauge steel strap measuring three inches wide by two inches long. Three Hilti X-U fasteners with one-and-a-half-inch embedment at one-inch spacing anchor the strap to the structure at a forty-five degree angle. The wire features four tight turns at both ends. A vertical hanger wire with a test load of two hundred pounds incorporates a three-quarter-inch thirteenth gauge ceiling clip and three tight turns at both ends. One in two brace wires requires testing to four hundred forty pounds typically.
(3) HILTI X-U FASTENERS W/ 1 1/2" EMBED AT 1" SPCG UNDERSIDE OF STRUCTURE 45.00° 1 1/2" 4 TIGHT TURNS BOTH ENDS SPLAYED SEISMIC BRACE WIRE STEEL STRAP 3" WIDE x 2" LONG x 12 GA MINIMUM 1 IN 10 VERTICAL HANGER WIRE TEST LOAD = 200 LBS . 3" CEILING CLIP 3/4" x 13 GA 3 TIGHT TURNS BOTH ENDS NOTE: ONE IN TWO BRACE WIRES TO BE TESTED TO 440 LBS, TYP
