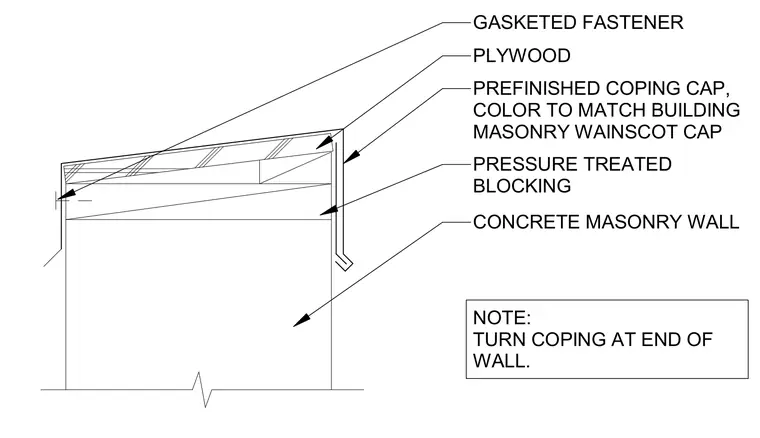

A prefinished metal coping cap sits atop pressure-treated wood blocking and a plywood substrate secured to the top of a concrete masonry wall. Gasketed fasteners anchor the coping assembly through the wood framing. The coping cap features a colored finish matching the building masonry wainscot. A drawing note specifies to turn the coping at the end of the wall.
PREFINISHED COPING CAP, COLOR TO MATCH BUILDING MASONRY WAINSCOT CAP PRESSURE TREATED BLOCKING PLYWOOD GASKETED FASTENER CONCRETE MASONRY WALL NOTE: TURN COPING AT END OF WALL.
