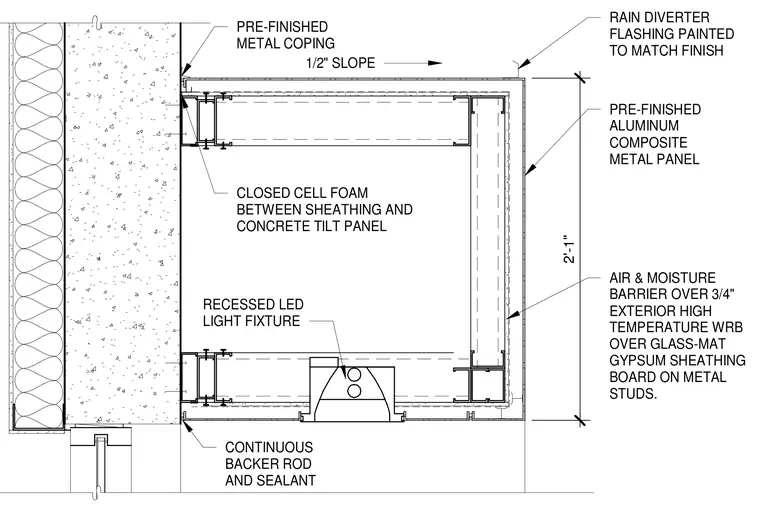

A pre-finished metal coping caps the top of the canopy assembly with a one-half-inch slope. Pre-finished aluminum composite metal panels clad the exterior over an air and moisture barrier, three-quarters-inch exterior high-temperature water-resistant barrier, and glass-mat gypsum sheathing board on metal studs. Closed-cell foam separates the framing sheathing from the concrete tilt-up wall panel. A rain diverter flashing painted to match the finish is integrated at the top corner, while a continuous backer rod and sealant seal the bottom joint. A recessed LED light fixture is integrated into the underside framing.
2'-1" PRE-FINISHED ALUMINUM COMPOSITE METAL PANEL AIR & MOISTURE BARRIER OVER 3/4" EXTERIOR HIGH TEMPERATURE WRB OVER GLASS-MAT GYPSUM SHEATHING BOARD ON METAL STUDS. 1/2" SLOPE CONTINUOUS BACKER ROD AND SEALANT PRE-FINISHED METAL COPING CLOSED CELL FOAM BETWEEN SHEATHING AND CONCRETE TILT PANEL RECESSED LED LIGHT FIXTURE RAIN DIVERTER FLASHING PAINTED TO MATCH FINISH
