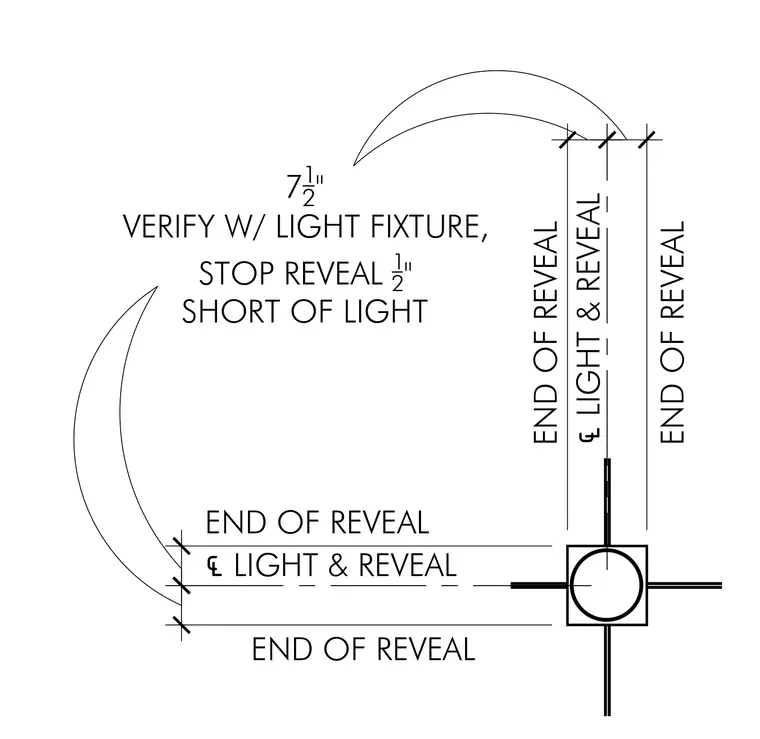

An architectural reveal is aligned with the center line of a light fixture while maintaining a seven and one-half inch clearance. The reveal stops one-half inch short of the light fixture end as verified with the specific lighting equipment.
7 1 2 " VERIFY W/ LIGHT FIXTURE, STOP REVEAL 1 2 " SHORT OF LIGHT END OF REVEAL ℄ LIGHT & REVEAL END OF REVEAL END OF REVEAL ℄ LIGHT & REVEAL END OF REVEAL
