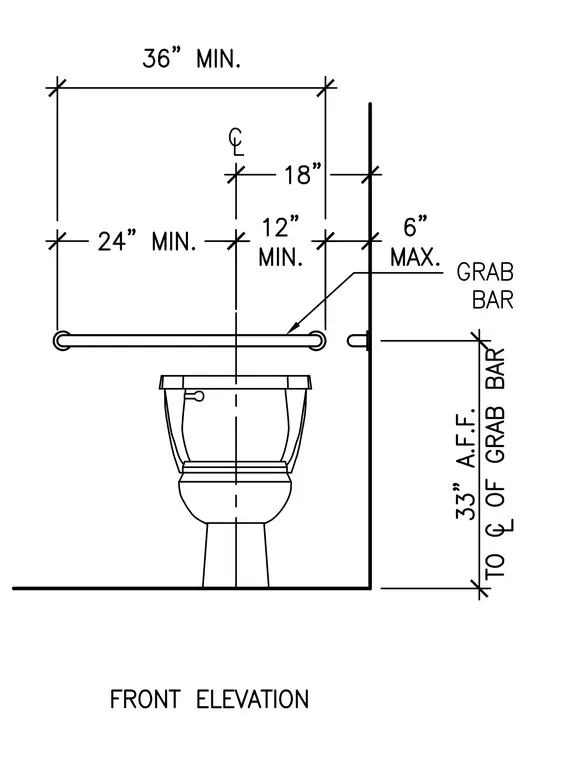

This elevation details the spatial requirements and grab bar installation dimensions for an accessible water closet stall. A horizontal grab bar is mounted on the side wall at thirty-three inches above the finished floor to the centerline of the grab bar. The centerline of the water closet is positioned eighteen inches from the side wall. The side wall grab bar extends a minimum of twenty-four inches on one side and a minimum of twelve inches from the centerline on the other, maintaining a total clear width of thirty-six inches minimum. The grab bar is mounted with a maximum spacing of six inches from the rear wall.
