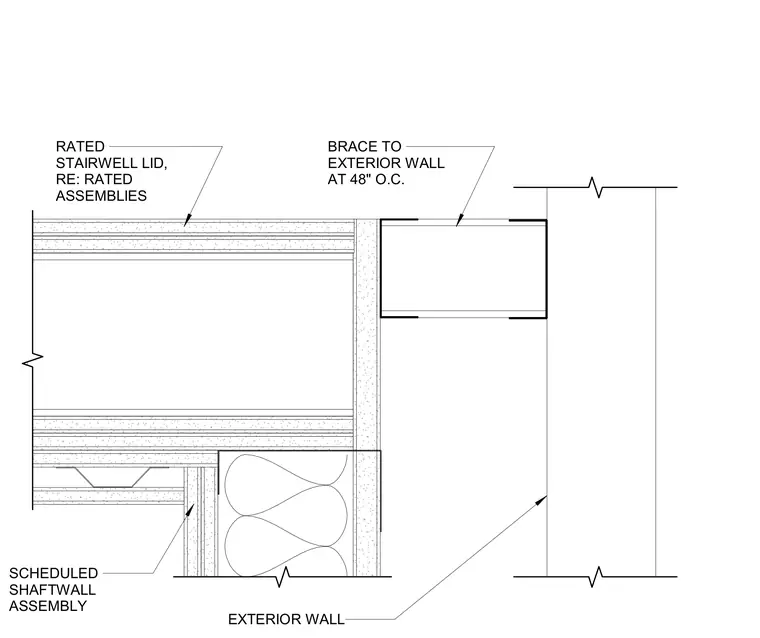

A scheduled shaftwall assembly brace connects to the exterior wall at forty-eight inches on center. The rated stairwell lid abuts the exterior wall assembly above the shaftwall ceiling framing. Framing and board layers are detailed to maintain the rated assembly continuity.
SCHEDULED SHAFTWALL ASSEMBLY BRACE TO EXTERIOR WALL AT 48" O.C. EXTERIOR WALL RATED STAIRWELL LID, RE: RATED ASSEMBLIES
