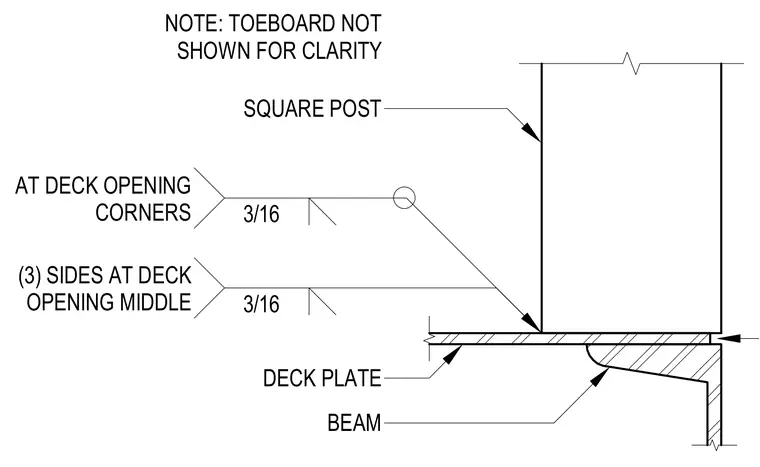

A square post bears on a deck plate supported by a structural steel beam at a floor or roof deck opening. Three-sixteenths inch fillet welds secure the post base along three sides at the deck opening middle and at the deck opening corners. A note indicates that the toeboard is omitted for clarity.
3/16 BEAM SQUARE POST DECK PLATE 3/16 NOTE: TOEBOARD NOT SHOWN FOR CLARITY (3) SIDES AT DECK OPENING MIDDLE AT DECK OPENING CORNERS
