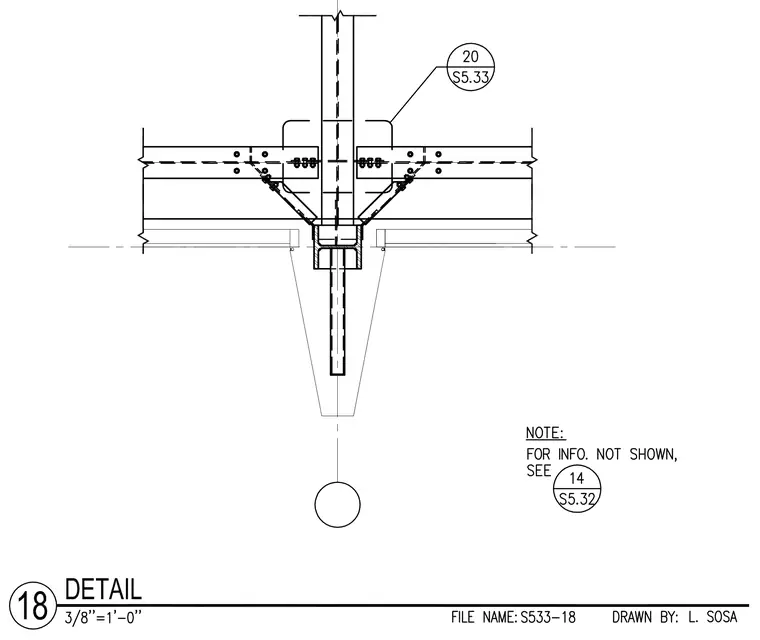

A vertical hollow structural section column frames into horizontal framing members connected with gusset plates and bolts. Diagonal gusset plates tie the horizontal members to the central column. A vertical plate extends downward from the underside of the assembly.
