Equipment Slot Detail at Perforated Metal Ceiling

Materials

Elements

About this detail

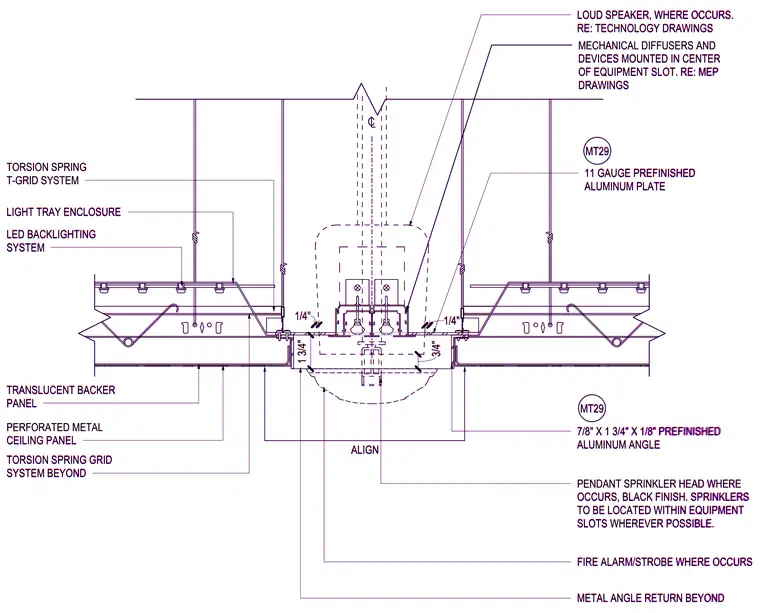

This architectural detail shows an equipment slot integrated into a perforated metal ceiling system supported by torsion spring grids. The assembly features an 11-gauge prefinished aluminum plate and a 7/8 inch by 1 3/4 inch by 1/8 inch prefinished aluminum angle forming the slot enclosure. A light tray enclosure with an LED backlighting system sits above translucent backer panels and perforated metal ceiling panels. Mechanical diffusers, pendant sprinkler heads in black finish, fire alarm strobes, and loudspeakers are centrally aligned within the equipment slot as coordinated with mechanical, electrical, and technology drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
