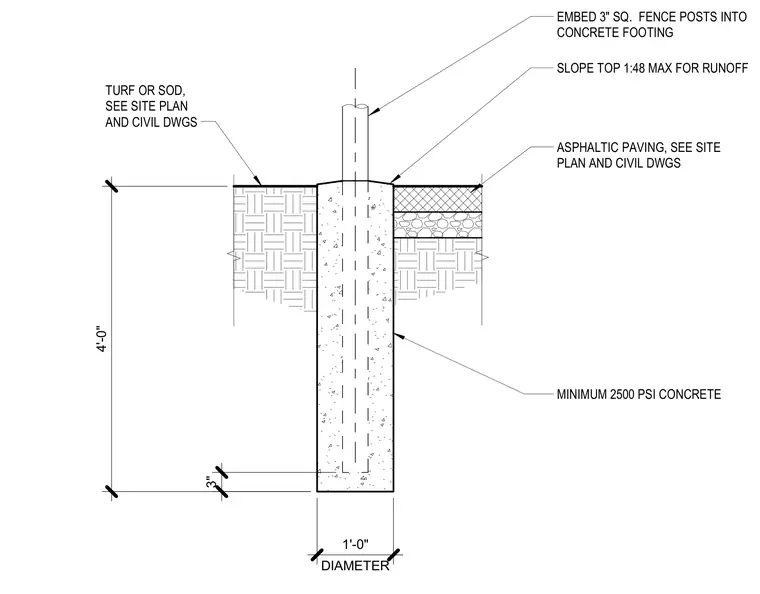

A three-inch square fence post is embedded into a cast-in-place concrete footing with a minimum compressive strength of 2,500 pounds per square inch. The footing measures one foot in diameter and extends four feet deep below grade. The top of the concrete slopes at a maximum ratio of one to forty-eight for runoff drainage. The surrounding grade transitions from asphaltic paving on one side to turf or sod on the other.
3" DIAMETER 1'-0" SLOPE TOP 1:48 MAX FOR RUNOFF ASPHALTIC PAVING, SEE SITE PLAN AND CIVIL DWGS EMBED 3" SQ. FENCE POSTS INTO CONCRETE FOOTING MINIMUM 2500 PSI CONCRETE TURF OR SOD, SEE SITE PLAN AND CIVIL DWGS 4'-0"
