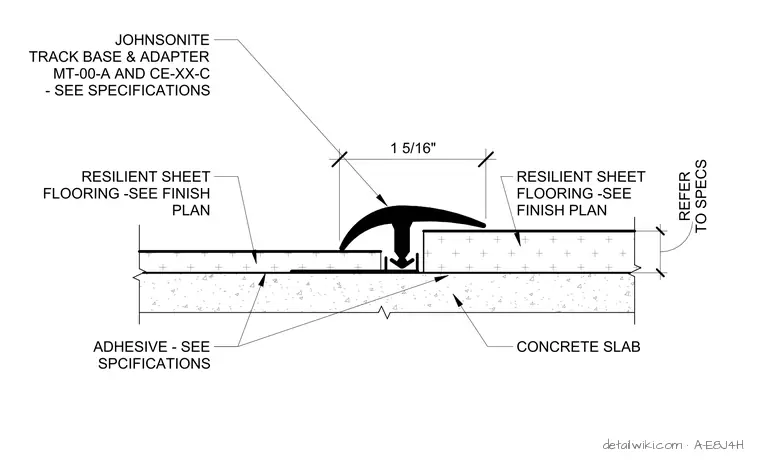

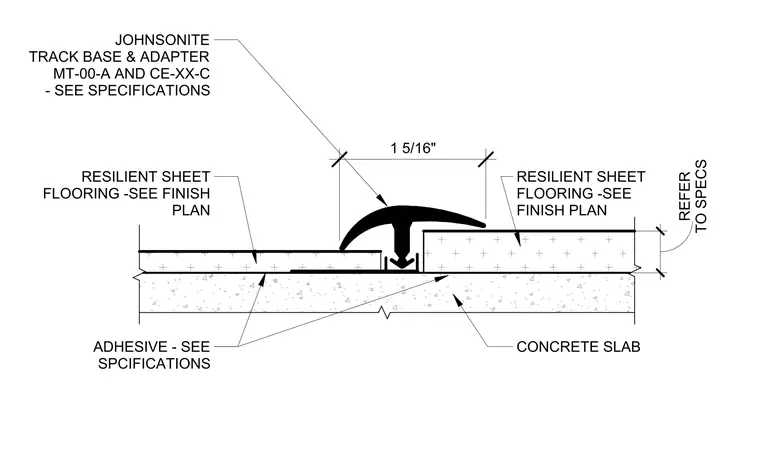

This assembly utilizes a Johnsonite track base and adapter, specifically models MT-00-A and CE-XX-C, to bridge the gap between two resilient sheet flooring surfaces. The transition strip spans a total width of 1 5/16 inches and is anchored to the concrete slab using adhesive as specified in the project documentation. The resilient sheet flooring is installed on either side of the transition, with the specific flooring types determined by the finish plan. The total thickness of the flooring assembly is referenced to the project specifications.
