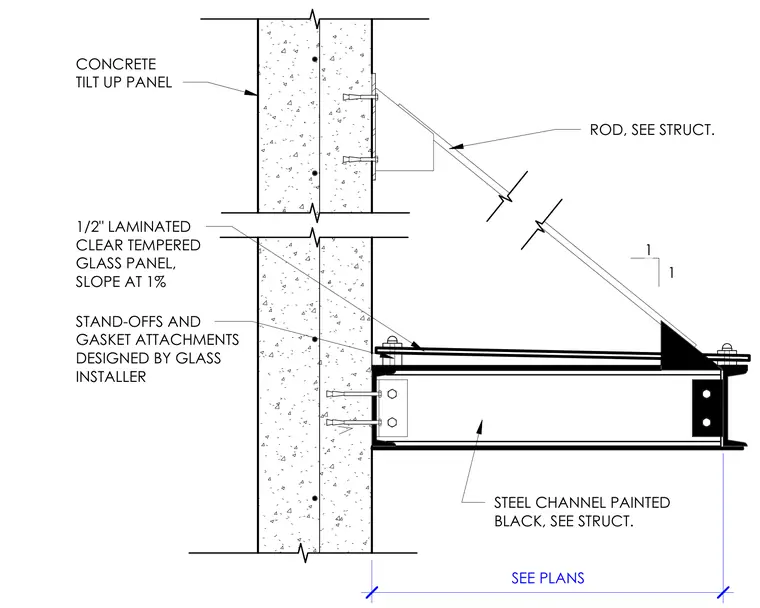

A one-half-inch laminated clear tempered glass panel slopes at one percent over a painted steel channel, anchored to a concrete tilt-up wall. Stand-offs and gasket attachments secure the glass per the glass installer design. A tension rod ties back to the concrete wall for structural support.
ROD, SEE STRUCT. 1 1 STEEL CHANNEL PAINTED BLACK, SEE STRUCT. CONCRETE TILT UP PANEL 1/2" LAMINATED CLEAR TEMPERED GLASS PANEL, SLOPE AT 1% STAND-OFFS AND GASKET ATTACHMENTS DESIGNED BY GLASS INSTALLER SEE PLANS
