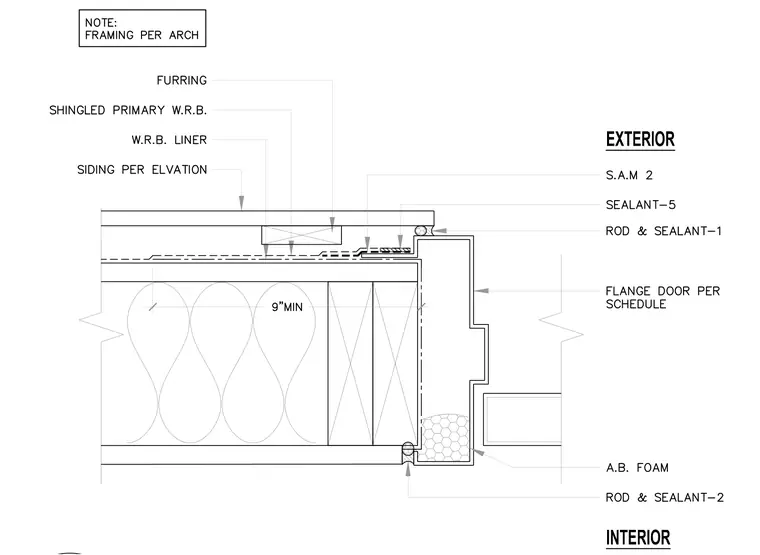

A flanged hollow metal door jamb assembly intersects with exterior siding. The frame is tied back to framing per architecture with a minimum nine-inch dimension, incorporating furring, shingled primary weather-resistive barrier, and weather-resistive barrier liner. The exterior joint is sealed with self-adhering membrane, sealant, and backer rod with sealant, while the interior is sealed with acoustic backer foam and backer rod with sealant.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
