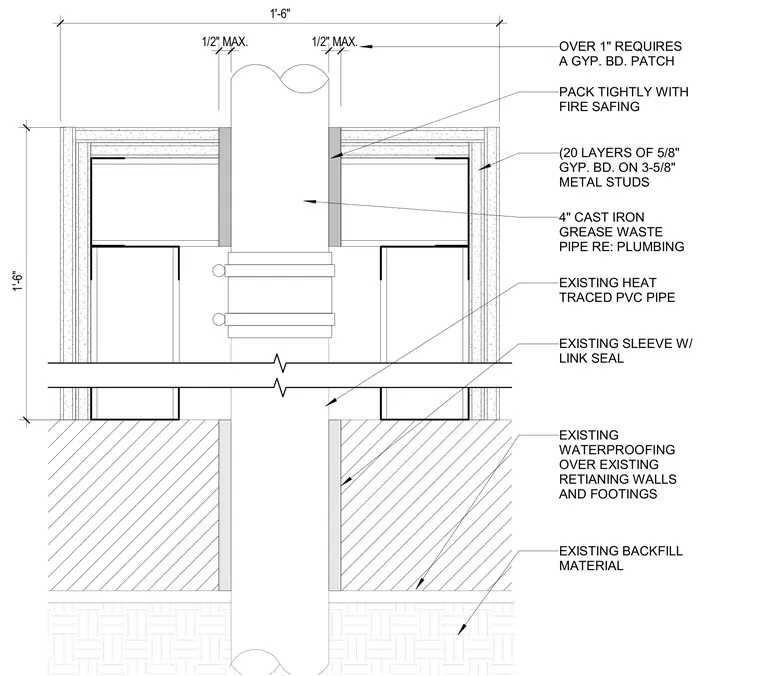

A fire-rated enclosure surrounds a 4-inch cast iron grease waste pipe and an existing heat-traced PVC pipe passing through existing backfill material. The assembly is built with two layers of 5/8-inch gypsum board on 3-5/8-inch metal studs, packed tightly with fire safing around the penetrations. The pipes pass through an existing sleeve with a link seal, set within existing waterproofing over retaining walls and footings.
EXISTING WATERPROOFING OVER EXISTING RETIANING WALLS AND FOOTINGS EXISTING SLEEVE W/ LINK SEAL EXISTING HEAT TRACED PVC PIPE 4" CAST IRON GREASE WASTE PIPE RE: PLUMBING OVER 1" REQUIRES A GYP. BD. PATCH PACK TIGHTLY WITH FIRE SAFING (20 LAYERS OF 5/8" GYP. BD. ON 3-5/8" METAL STUDS 1'-6" EXISTING BACKFILL MATERIAL 1/2" MAX. 1/2" MAX. 1'-6"
