Fire-Rated Wall Joint Backing and Sealant Detail

Elements

About this detail

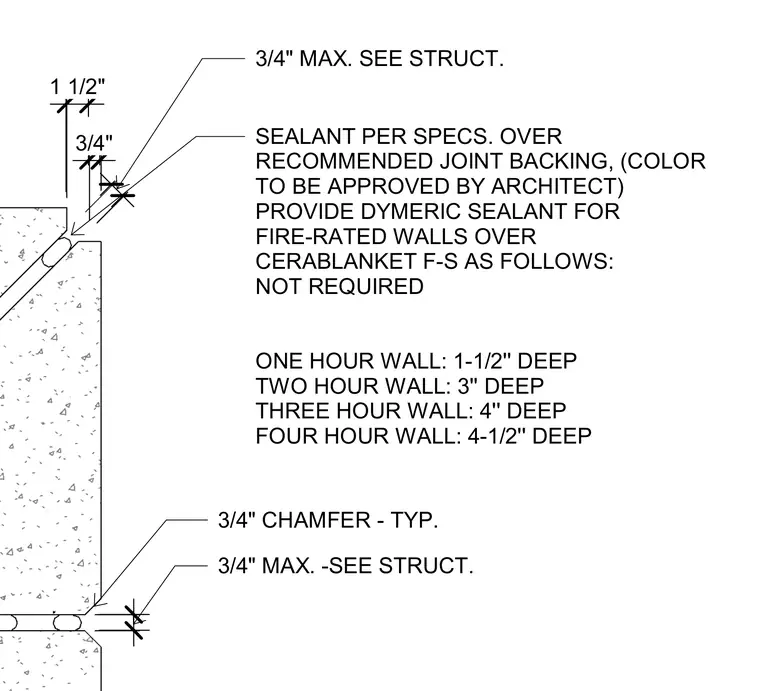

Sealant specified per project requirements is applied over joint backing, with color subject to architect approval. For fire-rated walls, Dymeric sealant is placed over Cerablanket F-S insulation at depths of one and one-half inches for one-hour walls, three inches for two-hour walls, four inches for three-hour walls, and four and one-half inches for four-hour walls. Dimensions indicate a maximum joint width of three-quarters of an inch and a three-quarter-inch typical chamfer.
