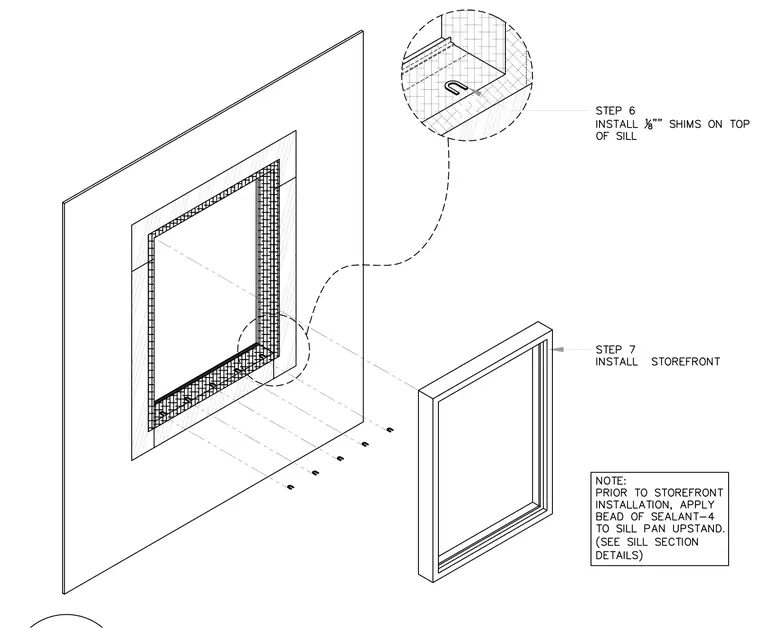

Step 6 directs the installation of one-eighth-inch shims on top of the sill within the rough opening. A note mandates the application of a bead of sealant to the sill pan upstand prior to setting the storefront frame. Step 7 completes the sequence by placing the storefront unit into the prepared opening.
