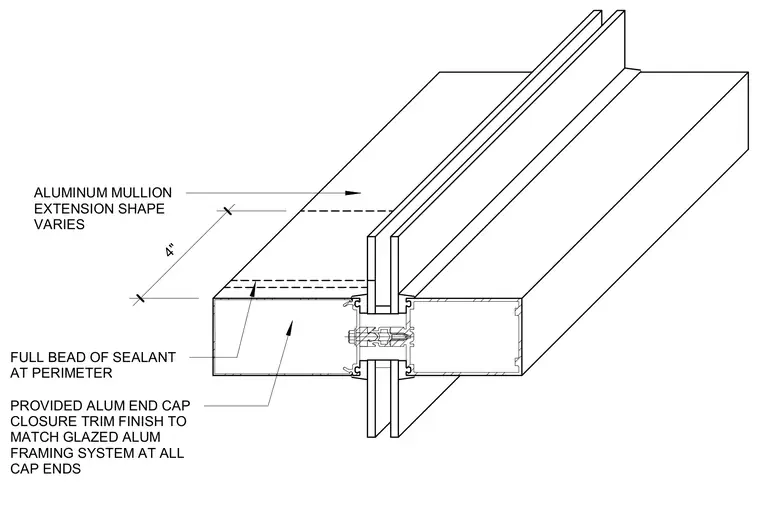

An aluminum end cap closure trim finishes the end of a four-inch aluminum mullion extension shape, with a finish matching the glazed aluminum framing system. A full bead of sealant is applied at the perimeter of the cap end to ensure weather resistance.
4" ALUMINUM MULLION EXTENSION SHAPE VARIES PROVIDED ALUM END CAP CLOSURE TRIM FINISH TO MATCH GLAZED ALUM FRAMING SYSTEM AT ALL CAP ENDS FULL BEAD OF SEALANT AT PERIMETER
