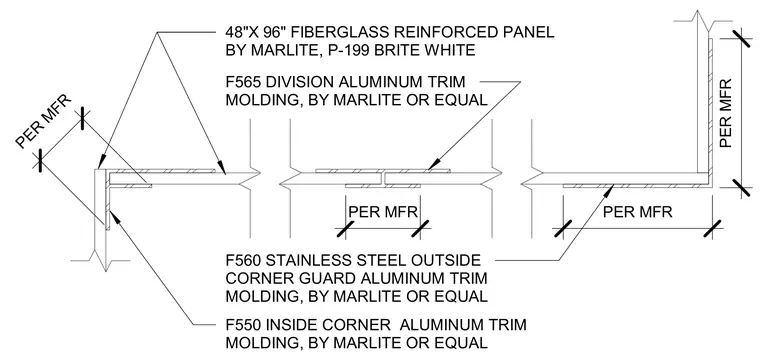

Forty-eight by ninety-six inch fiberglass reinforced plastic panels by Marlite in P-199 brite white finish are mounted to the wall substrate. Joints between panels are sealed with F565 division aluminum trim molding. Inside corners utilize F550 inside corner aluminum trim molding. Outside corners are protected with F560 stainless steel outside corner guard aluminum trim molding. All trims and installations follow manufacturer specifications.
F550 INSIDE CORNER ALUMINUM TRIM MOLDING, BY MARLITE OR EQUAL F565 DIVISION ALUMINUM TRIM MOLDING, BY MARLITE OR EQUAL 48"X 96" FIBERGLASS REINFORCED PANEL BY MARLITE, P-199 BRITE WHITE F560 STAINLESS STEEL OUTSIDE CORNER GUARD ALUMINUM TRIM MOLDING, BY MARLITE OR EQUAL PER MFR PER MFR PER MFR PER MFR
