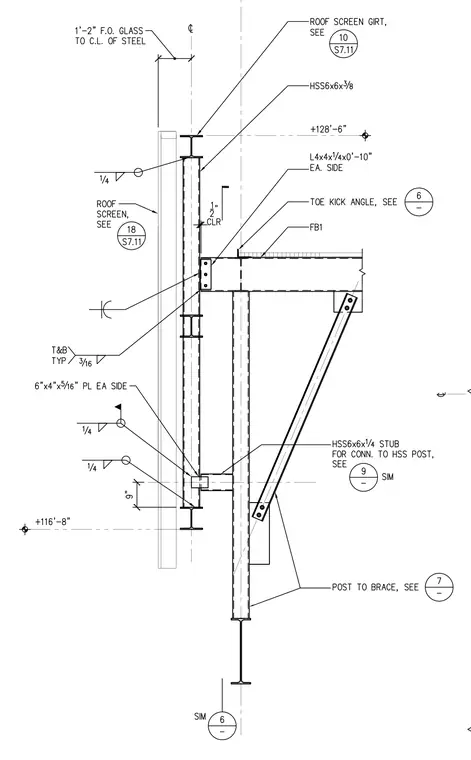

A hollow structural section HSS 6x6x3/8 post supports a roof screen girt with a one-quarter inch fillet weld, maintaining a one-half inch clearance to the structural line. An L4x4x1/4 angle measuring zero feet ten inches on each side connects the horizontal framing member, which also features a toe kick angle and an FB1 designation. A stub designated as HSS 6x6x1/4 connects to the HSS post using 6x4x5/16 plates on each side with three-sixteenths inch top and bottom welds and one-quarter inch fillet welds. A diagonal structural brace ties back to the vertical post, secured with bolted connections at both ends.
