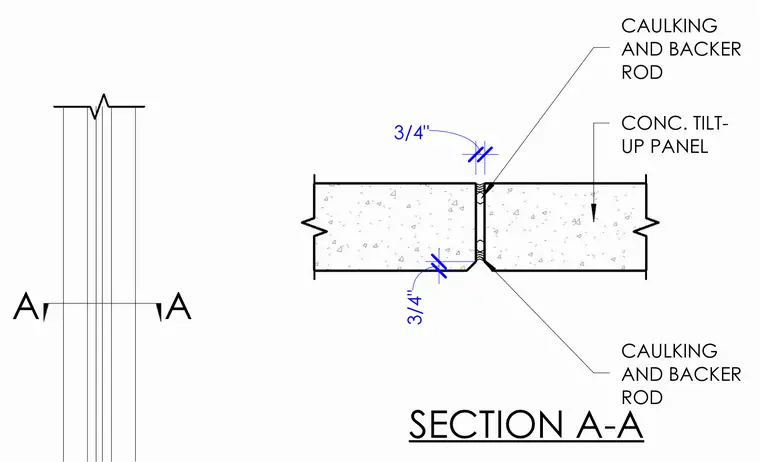

Adjacent concrete tilt-up panels are separated by a three-quarter-inch vertical joint. The joint is sealed with a compressible backer rod and flexible caulking applied at both exterior faces.
SECTION A-A A A CONC. TILT- UP PANEL 3/4" 3/4" CAULKING AND BACKER ROD CAULKING AND BACKER ROD
