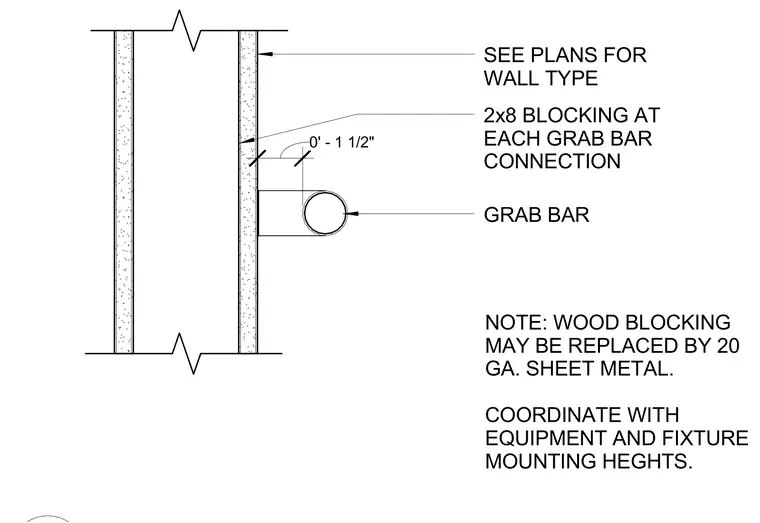

A grab bar is mounted to a framed wall assembly with interior finish layers. Two-by-eight wood blocking is installed within the stud cavity at each grab bar connection point. The wood blocking may be replaced by twenty gauge sheet metal based on project requirements. Wall types and equipment mounting heights must be coordinated with architectural plans.
GRAB BAR SEE PLANS FOR WALL TYPE 2x8 BLOCKING AT EACH GRAB BAR CONNECTION 0' - 1 1/2" NOTE: WOOD BLOCKING MAY BE REPLACED BY 20 GA. SHEET METAL. COORDINATE WITH EQUIPMENT AND FIXTURE MOUNTING HEGHTS.
