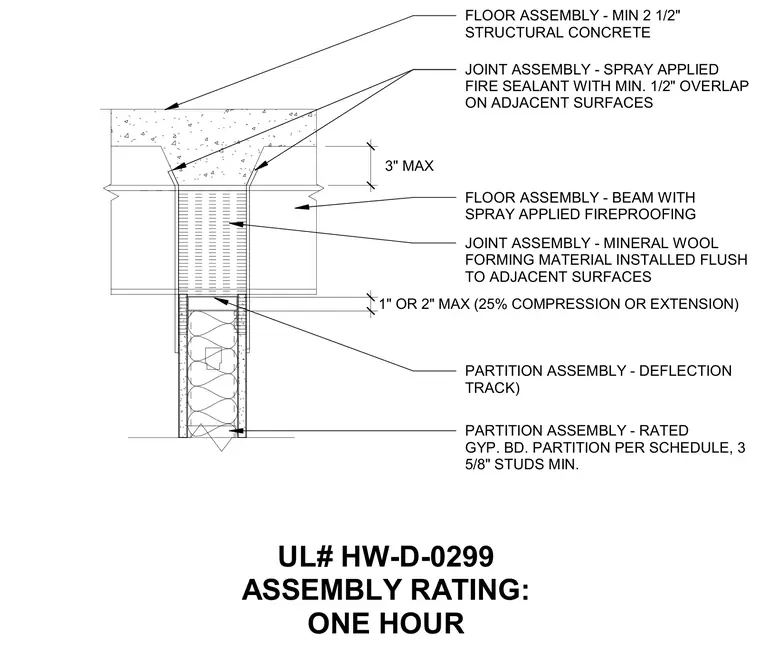

This one-hour fire-rated head of wall assembly features a rated gypsum board partition with a minimum three and five-eighths inch studs terminating below a structural steel floor beam. A deflection track accommodates movement, accompanied by mineral wool forming material installed flush to adjacent surfaces. Spray-applied fire sealant with a minimum one-half inch overlap is applied to the joint assembly. The floor assembly consists of a minimum two and one-half inch structural concrete slab over a steel deck, with spray-applied fireproofing on the supporting beam.
UL# HW-D-0299 ASSEMBLY RATING: ONE HOUR JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES PARTITION ASSEMBLY - RATED GYP. BD. PARTITION PER SCHEDULE, 3 5/8" STUDS MIN. FLOOR ASSEMBLY - BEAM WITH SPRAY APPLIED FIREPROOFING PARTITION ASSEMBLY - DEFLECTION TRACK) JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES FLOOR ASSEMBLY - MIN 2 1/2" STRUCTURAL CONCRETE 3" MAX 1" OR 2" MAX (25% COMPRESSION OR EXTENSION)
