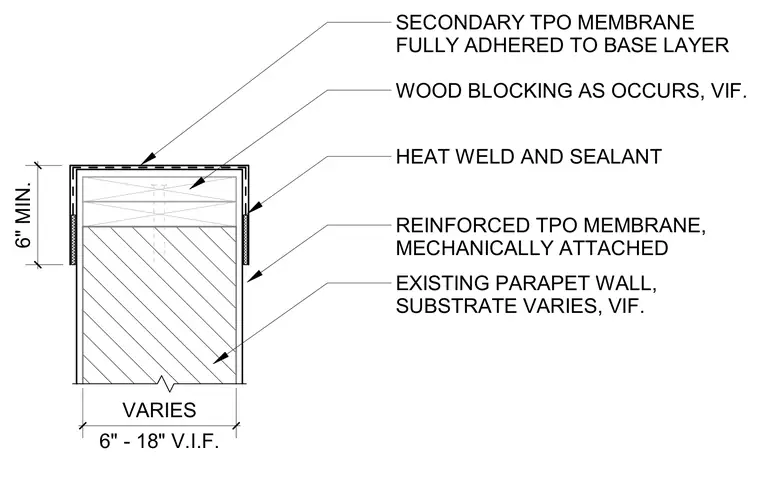

A TPO-clad parapet wall assembly terminates at an existing parapet with a variable substrate width from six to eighteen inches. Wood blocking as occurs, verify in field, is fastened at the top of the wall. A secondary TPO membrane is fully adhered to the base layer with heat weld and sealant. Reinforced TPO membrane is mechanically attached to the face of the existing wall, maintaining a six-inch minimum vertical flashing height.
6" - 18" V.I.F. VARIES WOOD BLOCKING AS OCCURS, VIF. SECONDARY TPO MEMBRANE FULLY ADHERED TO BASE LAYER HEAT WELD AND SEALANT REINFORCED TPO MEMBRANE, MECHANICALLY ATTACHED EXISTING PARAPET WALL, SUBSTRATE VARIES, VIF. 6" MIN.
