Architectural · A-E6PEH

Stainless Steel Guardrail at Square Post and Deck

Materials

Steel Stainless Steel

Elements

Columns Beams Decks Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

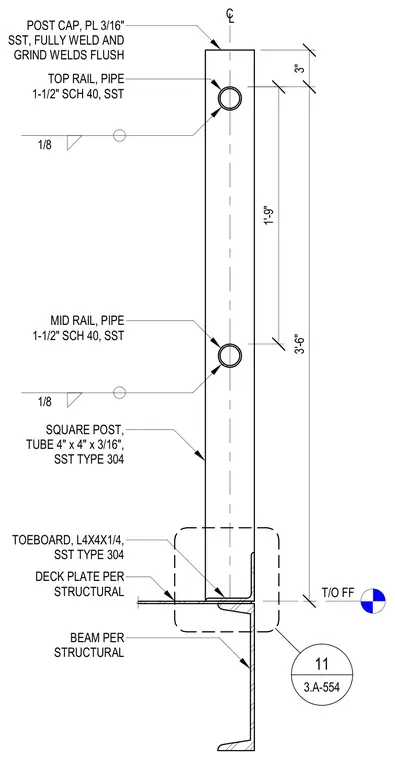

This stainless steel guardrail detail features a 4" x 4" x 3/16" Type 304 stainless steel square tube post capped with a 3/16" stainless steel plate that is fully welded with welds ground flush. The top rail and mid rail consist of 1-1/2" schedule 40 stainless steel pipes connected to the post with 1/8" fillet welds. At the base, a L4x4x1/4 Type 304 stainless steel toeboard is positioned above a deck plate and beam sized per structural specifications.
