A one-hour fire-rated partition head intersects a metal deck perpendicularly, framed with a firetrack shadowline channel and five-eighths-inch Type X gypsum board on each side. A two-inch wide Z-clip secures the assembly beneath the deck flutes. Fire-rated gypsum compound or fire caulk seals the joints at the track. A six-inch wide fire seal with a minimum one-sixteenth-inch dry thickness of sprayed or troweled mineral fill is applied to each side, overlapping the gypsum board by at least one-half inch.

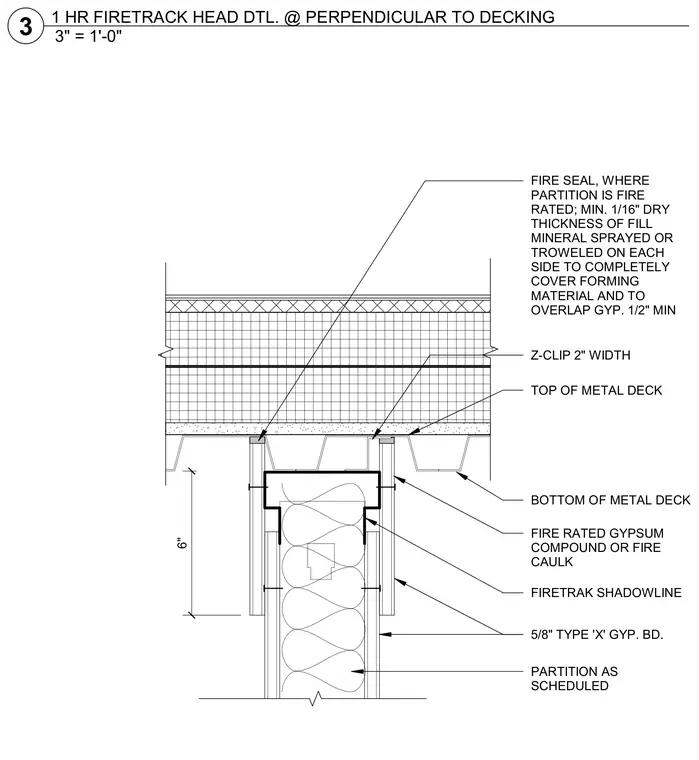

TOP OF METAL DECK BOTTOM OF METAL DECK FIRE RATED GYPSUM COMPOUND OR FIRE CAULK FIRETRAK SHADOWLINE 5/8" TYPE 'X' GYP. BD. PARTITION AS SCHEDULED Z-CLIP 2" WIDTH 6" FIRE SEAL, WHERE PARTITION IS FIRE RATED; MIN. 1/16" DRY THICKNESS OF FILL MINERAL SPRAYED OR TROWELED ON EACH SIDE TO COMPLETELY COVER FORMING MATERIAL AND TO OVERLAP GYP. 1/2" MIN 3" = 1'-0" 3 1 HR FIRETRACK HEAD DTL. @ PERPENDICULAR TO DECKING
