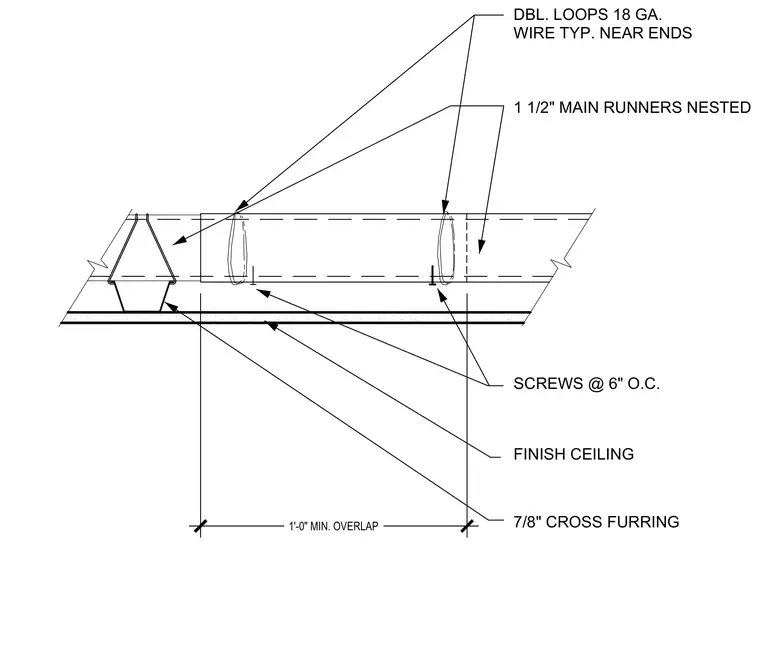

One-and-one-half-inch main runners are nested together with a one-foot-zero-inch minimum overlap. Double loops of eighteen-gauge wire are tied typically near the ends of the splice. Seven-eighths-inch cross furring is attached below the runners with screws at six inches on center supporting the finish ceiling.
1'-0" MIN. OVERLAP FINISH CEILING 7/8" CROSS FURRING SCREWS @ 6" O.C. WIRE TYP. NEAR ENDS DBL. LOOPS 18 GA. 1 1/2" MAIN RUNNERS NESTED
