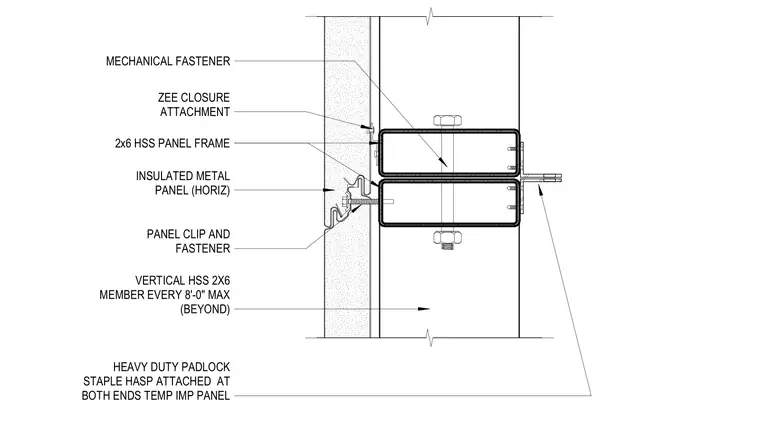

This assembly secures a temporary insulated metal panel to a structural frame consisting of stacked 2x6 hollow structural section members. The panels are held in place by a panel clip and fastener system, with a zee closure attachment providing the interface between the panel and the frame. A mechanical fastener secures the stacked hollow structural section members together. A heavy-duty padlock staple hasp is attached at both ends of the temporary insulated metal panel to provide a locking mechanism. Vertical 2x6 hollow structural section members are spaced at a maximum of 8 feet on center beyond the primary connection point.
Text on the drawing
INSULATED METAL PANEL (HORIZ) PANEL CLIP AND FASTENER MECHANICAL FASTENER ZEE CLOSURE ATTACHMENT 2x6 HSS PANEL FRAME VERTICAL HSS 2X6 MEMBER EVERY 8'-0" MAX (BEYOND) HEAVY DUTY PADLOCK STAPLE HASP ATTACHED AT BOTH ENDS TEMP IMP PANEL
