Architectural · A-E657X

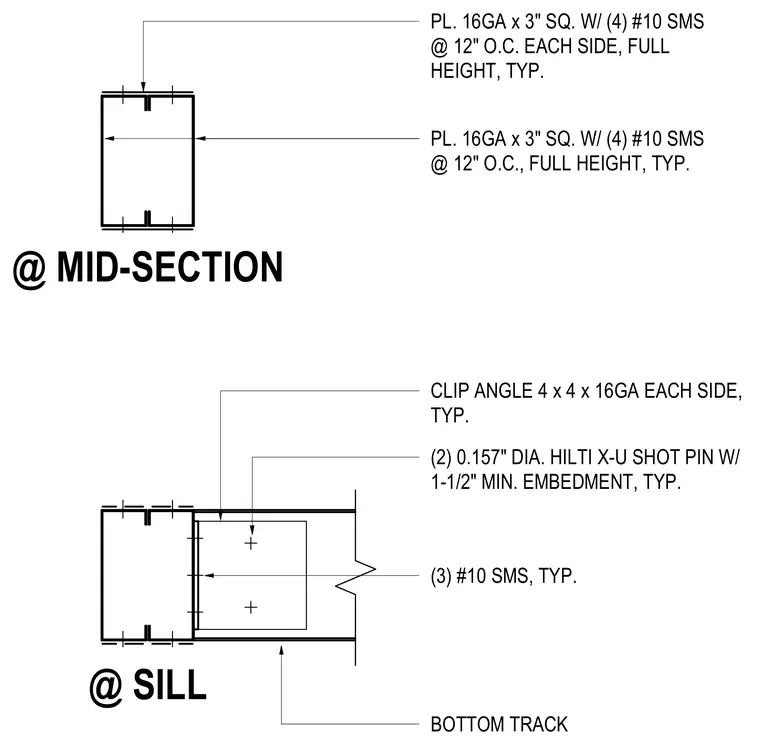

Typical Door Jamb and Sill Detail at Steel Partition

Materials

Steel

Elements

Partitions Doors Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

A typical steel partition door jamb at the mid-section and sill is constructed with jamb framing reinforced full height with a 16-gauge by 3-inch square plate attached on each side using four number 10 sheet metal screws spaced at 12 inches on center. At the sill, a bottom track intersects the assembly, anchored by 4x4 16-gauge clip angles on each side. Two 0.157-inch diameter Hilti X-U shot pins with a 1-1/2 inch minimum embedment secure the clip angle, while three number 10 sheet metal screws fasten the components together.
