The door sign horizontal center line is positioned between fifty-eight inches minimum and sixty inches maximum above the finished floor. The door symbol vertical center line must not be more than one inch offset from the door vertical center line.

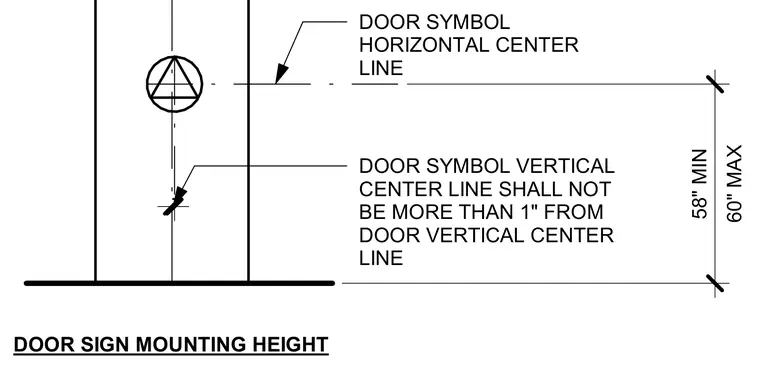

DOOR SIGN MOUNTING HEIGHT 60" MAX 58" MIN DOOR SYMBOL HORIZONTAL CENTER LINE DOOR SYMBOL VERTICAL CENTER LINE SHALL NOT BE MORE THAN 1" FROM DOOR VERTICAL CENTER LINE .
