Architectural · A-E5A42

Fabric Wrapped Panel Edge

Elements

About this detail

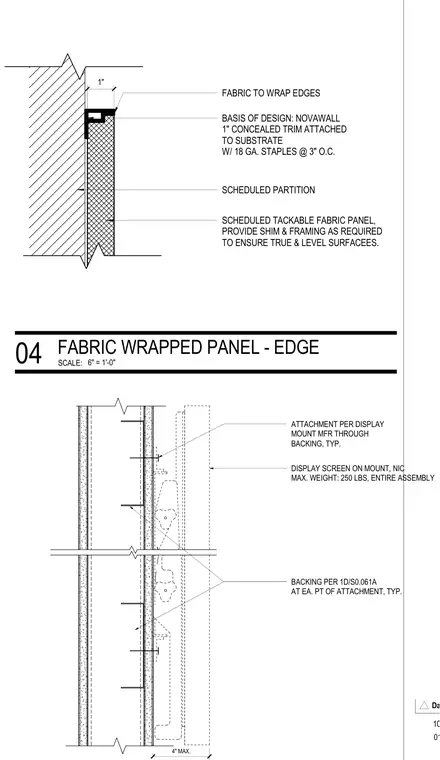

The top edge detail features a scheduled tackable fabric panel with edges wrapped into a Novawall one-inch concealed trim, attached to the substrate using eighteen-gauge staples spaced at three inches on center with shims and framing provided for a true and level surface. The lower detail shows a display screen mounted on a structural backing capable of supporting a maximum weight of two hundred fifty pounds, with mount attachments installed per the manufacturer through the backing at each point of attachment. Entire assembly backing is provided per structural drawing specifications at each attachment point.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
