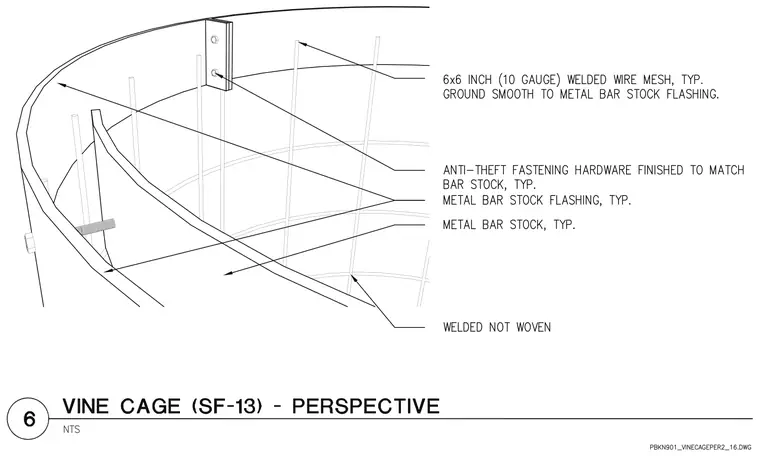

A circular vine cage is constructed with metal bar stock flashing joined by a splice plate fastened with anti-theft hardware. The internal structure utilizes six-by-six inch ten gauge welded wire mesh that is welded rather than woven and ground smooth to the metal bar stock flashing. Anti-theft fastening hardware is finished to match the bar stock throughout the assembly.
