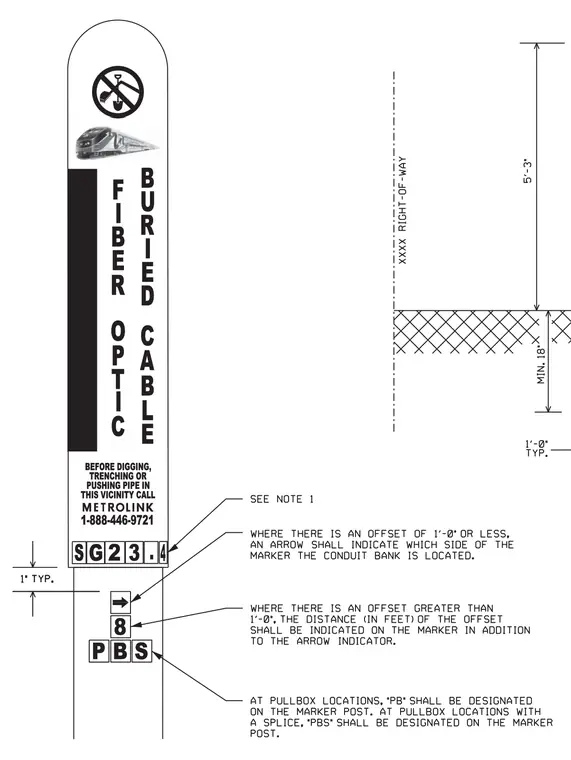

A buried fiber optic cable marker post includes warning text, Metrolink contact information, and directional offset indicators. The post features a rounded top with a no-digging icon and train graphic above vertical lettering reading BURIED FIBER OPTIC CABLE. Below the warning text, callouts define marker designations including SG23.4, directional arrows for offsets of one foot or less, numerical distance indicators for offsets greater than one foot, and PB or PBS designations for pullbox locations. Dimensions indicate a minimum eighteen-inch depth and right-of-way offsets referenced from a property or centerline.
