The gate assembly utilizes an outer frame constructed from 4x4x3/16 inch hollow structural section steel tubing with mitered corners on all four sides. A 2x2x3/16 inch ledger frame is provided on all four sides of the opening, also with mitered corners. An internal 4x2x3/16 inch hollow structural section steel mid rail spans horizontally across the gate structure. Infill consists of 1-1/2 inch 18-gauge metal decking spanning vertically within the frame. All exposed steel surfaces receive a factory-applied primer and paint finish.

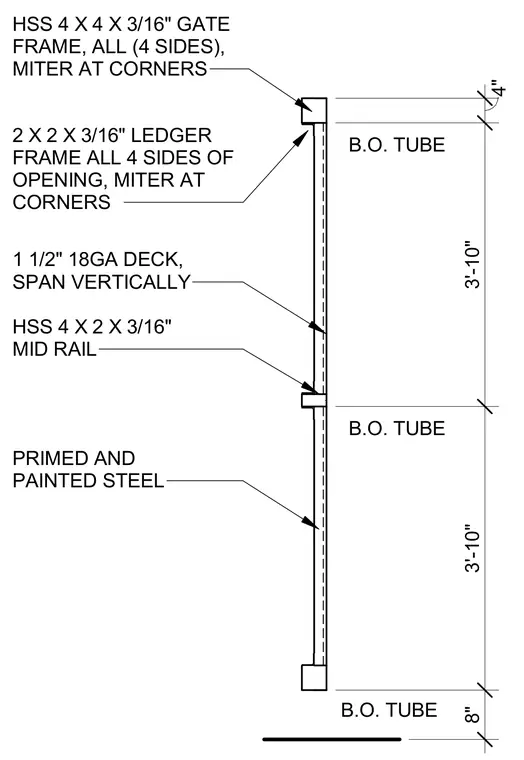

HSS 4 X 4 X 3/16" GATE FRAME, ALL (4 SIDES), MITER AT CORNERS 2 X 2 X 3/16" LEDGER FRAME ALL 4 SIDES OF OPENING, MITER AT CORNERS HSS 4 X 2 X 3/16" MID RAIL 4" 3'-10" 3'-10" 8" B.O. TUBE B.O. TUBE B.O. TUBE 1 1/2" 18GA DECK, SPAN VERTICALLY PRIMED AND PAINTED STEEL
