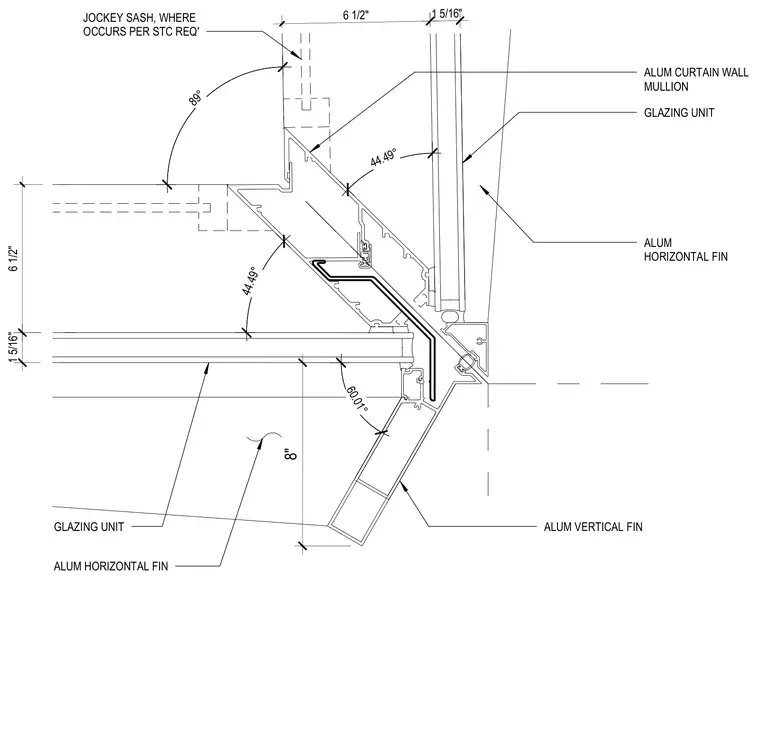

This plan detail shows an aluminum curtain wall outer corner mullion framing an angled glazing junction. One-and-five-sixteenth-inch glazing units frame into the aluminum curtain wall mullions at a corner angle, incorporating a jockey sash where required per STC requirements. Exterior aluminum horizontal fins and aluminum vertical fins attach to the mullion profiles to provide solar shading. Dimensions of six-and-a-half inches and various intersecting angles establish the geometry of the corner extrusions.
1 5/16" GLAZING UNIT GLAZING UNIT ALUM HORIZONTAL FIN ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN 6 1/2" 89° 44.49° 44.49° 1 5/16" 6 1/2" 60.01° JOCKEY SASH, WHERE OCCURS PER STC REQ' 8"
