Architectural · A-E3VA2

Wood Window Jamb at HSS Column with Stucco

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Walls Windows Curtain Walls Insulation Roof / Floor Openings

Connections

HSS Connection

About this detail

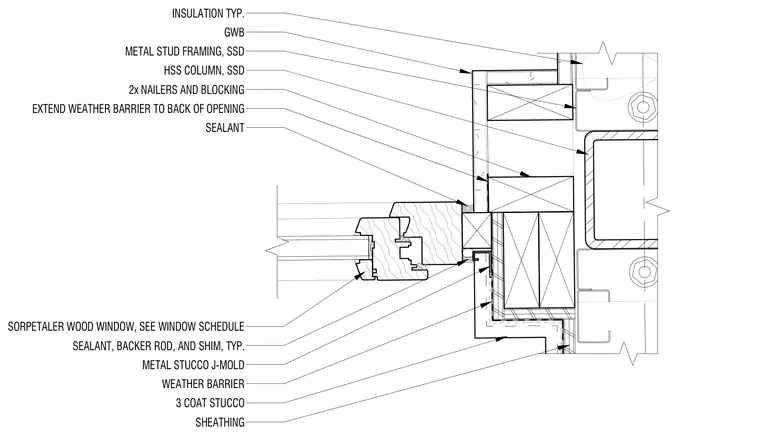

This wall jamb detail connects a wood window to an exterior wall assembly backed by a hollow structural section steel column and cold-formed metal stud framing. The exterior finish consists of a three-coat stucco system over sheathing and weather barrier, terminated with a metal stucco J-mold. The weather barrier extends to the back of the rough opening, sealed with backer rod and sealant alongside typical shims. Interior finishes include gypsum wallboard attached to wood nailers and blocking around the structural column, with insulation placed within the stud cavity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
