Fan Coil Unit Opening Trim and Ceiling Transition Detail

Materials

Elements

Beams Walls Ceilings Roof / Floor Openings

About this detail

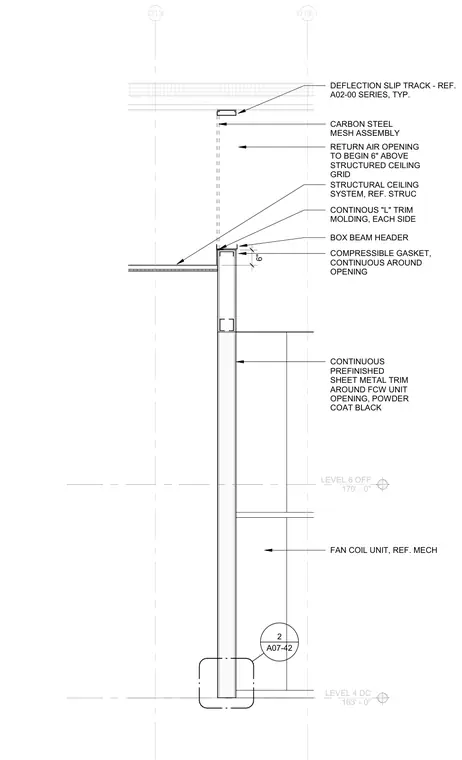

A continuous prefinished sheet metal trim with a black powder coat surrounds the fan coil unit opening. A box beam header sits below a continuous compressible gasket around the opening. A continuous angle trim molding is installed on each side. A six-inch carbon steel mesh assembly and deflection slip track are located at the upper ceiling level. The return air opening begins six inches above the structured ceiling grid, which connects to the structural ceiling system.
