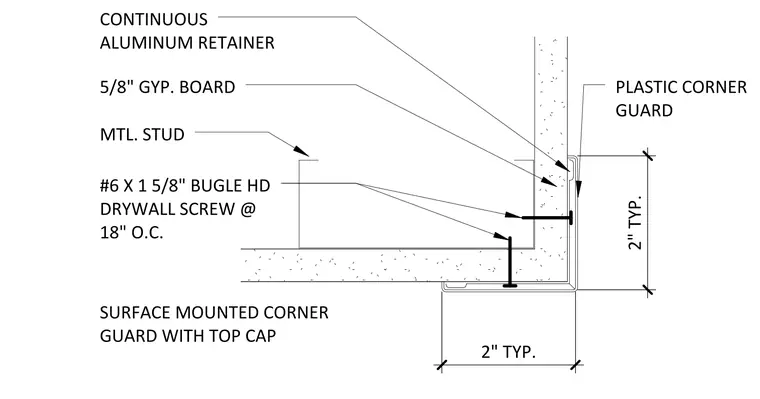

This wall corner assembly consists of five-eighths inch gypsum board over metal stud framing with a continuous aluminum retainer and top cap. The surface mounted corner guard is secured using number six by one and five-eighths inch bugle head drywall screws spaced at eighteen inches on center. A plastic corner guard is embedded at the outer wall corner behind the surface protector.
2" TYP. 2" TYP. CONTINUOUS ALUMINUM RETAINER SURFACE MOUNTED CORNER GUARD WITH TOP CAP 5/8" GYP. BOARD MTL. STUD PLASTIC CORNER GUARD #6 X 1 5/8" BUGLE HD DRYWALL SCREW @ 18" O.C.
