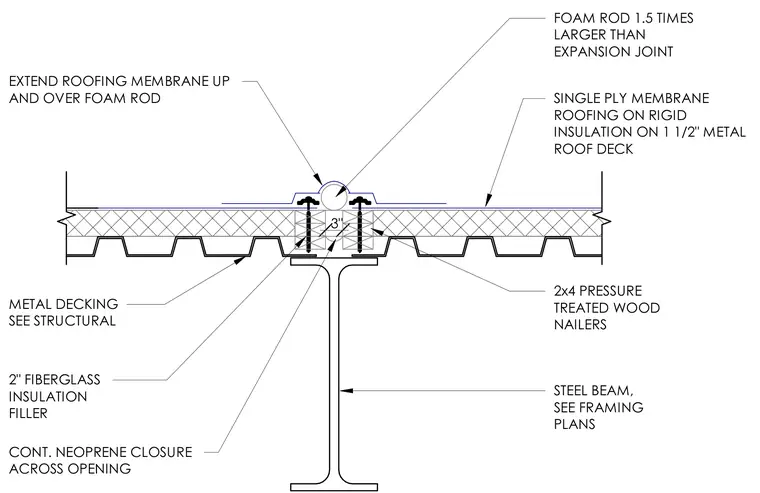

A single ply membrane roofing system is installed over rigid insulation and a 1 1/2-inch metal roof deck, separated by a 3-inch expansion joint opening over a steel beam. The roofing membrane extends up and over a foam backer rod that is sized 1.5 times larger than the expansion joint. A continuous neoprene closure spans across the opening, positioned between two 2x4 pressure treated wood nailers anchored to the deck. A 2-inch fiberglass insulation filler occupies the space beneath the joint, while the supporting steel beam is detailed per the structural framing plans.
FOAM ROD 1.5 TIMES LARGER THAN EXPANSION JOINT SINGLE PLY MEMBRANE ROOFING ON RIGID INSULATION ON 1 1/2" METAL ROOF DECK EXTEND ROOFING MEMBRANE UP AND OVER FOAM ROD 2x4 PRESSURE TREATED WOOD NAILERS 2" FIBERGLASS INSULATION FILLER CONT. NEOPRENE CLOSURE ACROSS OPENING STEEL BEAM, SEE FRAMING PLANS 3" METAL DECKING SEE STRUCTURAL
