Text on the drawing

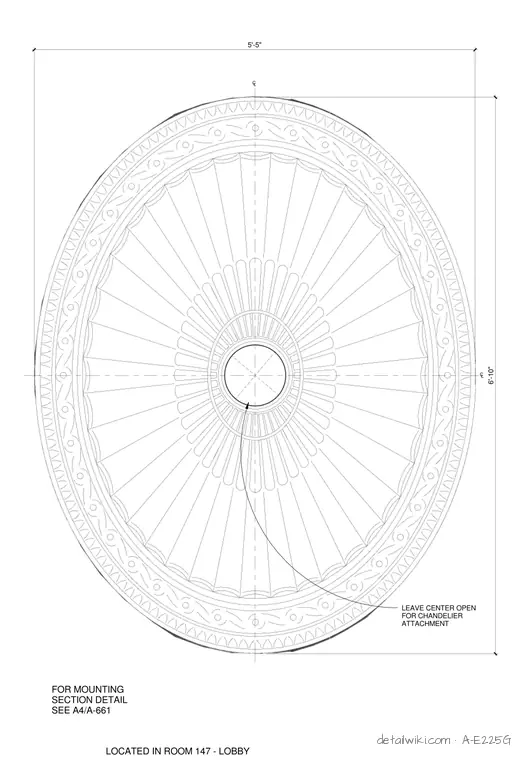

5'-5" 6'-10" LEAVE CENTER OPEN FOR CHANDELIER ATTACHMENT CL CL LOCATED IN ROOM 147 - LOBBY FOR MOUNTING SECTION DETAIL SEE A4/A-661
