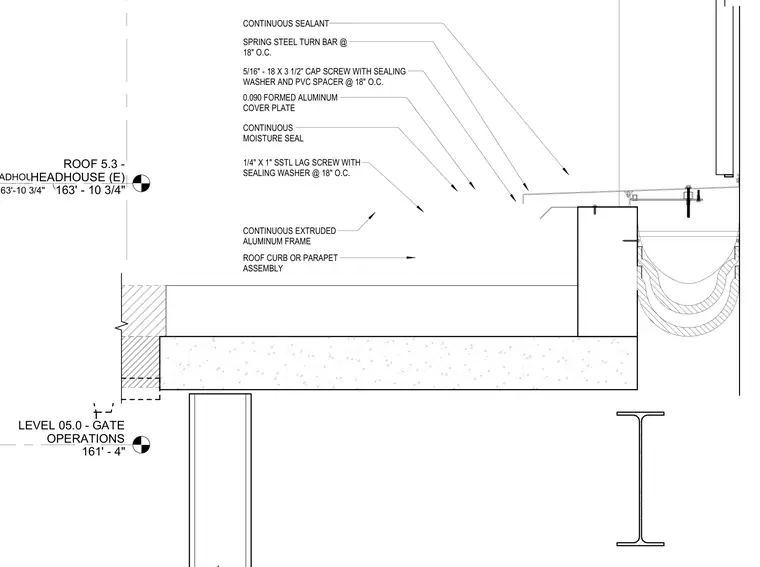

An expansion joint assembly is installed across a roof curb or parapet assembly using a continuous extruded aluminum frame. A zero-point-zero-nine-zero-inch formed aluminum cover plate spans the joint, secured with five-sixteenths-inch by three-and-a-half-inch cap screws with sealing washers and PVC spacers at eighteen inches on center. A continuous moisture seal and continuous sealant protect the joint junction. A spring steel turn bar is spaced at eighteen inches on center. A quarter-inch by one-inch stainless steel lag screw with a sealing washer at eighteen inches on center fastens the assembly components.
ROOF CURB OR PARAPET ASSEMBLY 1/4" X 1" SSTL LAG SCREW WITH SEALING WASHER @ 18" O.C. CONTINUOUS EXTRUDED ALUMINUM FRAME CONTINUOUS MOISTURE SEAL 0.090 FORMED ALUMINUM COVER PLATE 5/16" - 18 X 3 1/2" CAP SCREW WITH SEALING WASHER AND PVC SPACER @ 18" O.C. SPRING STEEL TURN BAR @ 18" O.C. CONTINUOUS SEALANT ROOF 5.3 - HEADHOUSE 163'-10 3/4" LEVEL 05.0 - GATE OPERATIONS 161' - 4" ROOF 5.3 - HEADHOUSE (E) 163' - 10 3/4"
