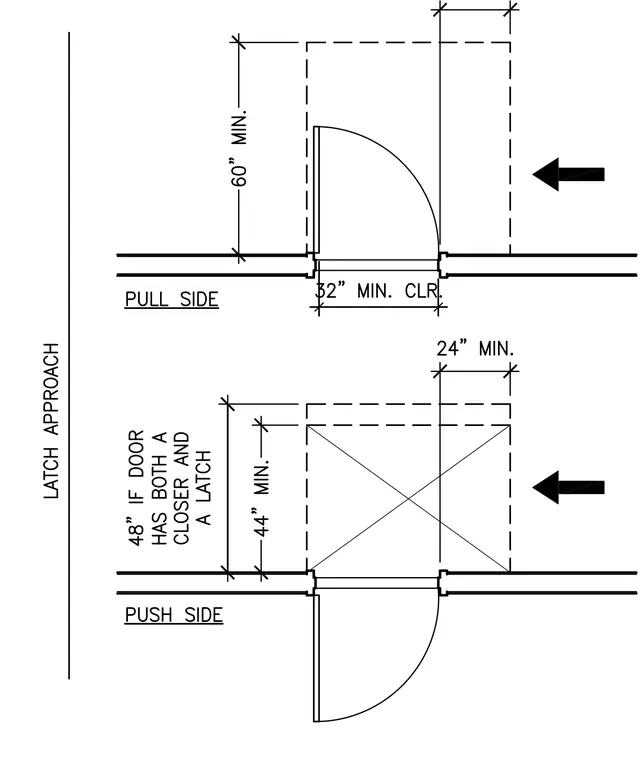

Accessibility clearance requirements for a door with a latch approach on both the pull and push sides. The pull side configuration requires a sixty-inch minimum clear space extending from the latch side, thirty-two inches minimum clear opening width, and clear floor space as indicated by dashed boundaries. The push side configuration requires forty-four inches minimum depth, twenty-four inches minimum clear space beyond the latch, and forty-eight inches minimum depth if the door is equipped with both a closer and a latch.
