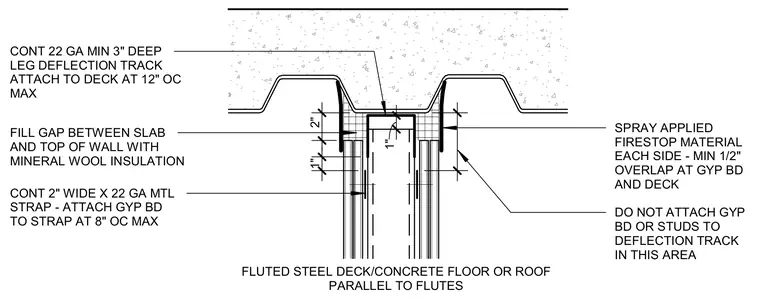

A continuous twenty-two gauge minimum three-inch deep leg deflection track attaches to the fluted steel deck at twelve inches on center maximum. The gap between the concrete slab and the top of the wall is filled with mineral wool insulation. A continuous two-inch wide by twenty-two gauge metal strap ties the gypsum board together, with the gypsum board attached to the strap at eight inches on center maximum. Spray-applied firestop material is applied to each side with a minimum one-half-inch overlap at the gypsum board and deck. Gypsum board and studs remain unattached to the deflection track in this designated area.
1" 4 47/256" 1" 2" FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX
