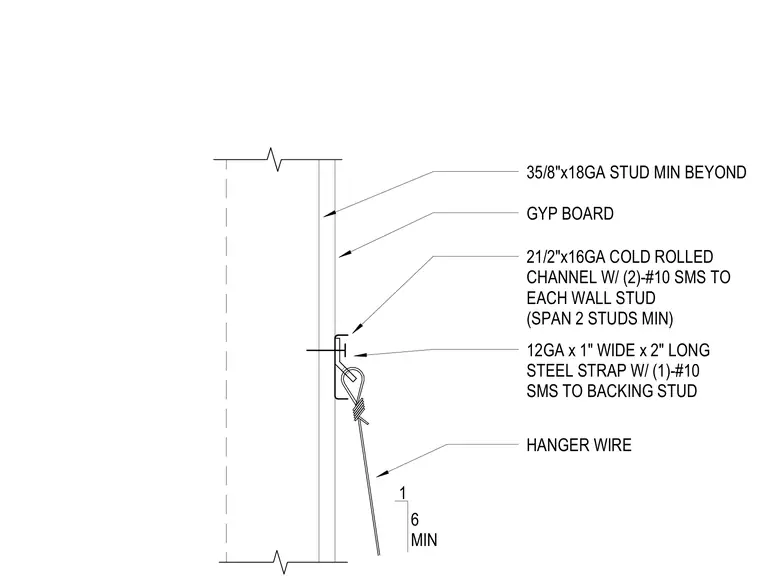

A 3-5/8 inch by 18-gauge metal stud extends minimum beyond the gypsum board, backed by a 2-1/2 inch by 16-gauge cold-rolled channel spanning a minimum of two wall studs. The channel is fastened to each wall stud with two number 10 sheet metal screws. A 12-gauge by 1-inch wide by 2-long steel strap secures a hanger wire to the backing stud using one number 10 sheet metal screw.
1 6 MIN 35/8"x18GA STUD MIN BEYOND GYP BOARD 21/2"x16GA COLD ROLLED CHANNEL W/ (2)-#10 SMS TO EACH WALL STUD (SPAN 2 STUDS MIN) 12GA x 1" WIDE x 2" LONG STEEL STRAP W/ (1)-#10 SMS TO BACKING STUD HANGER WIRE
