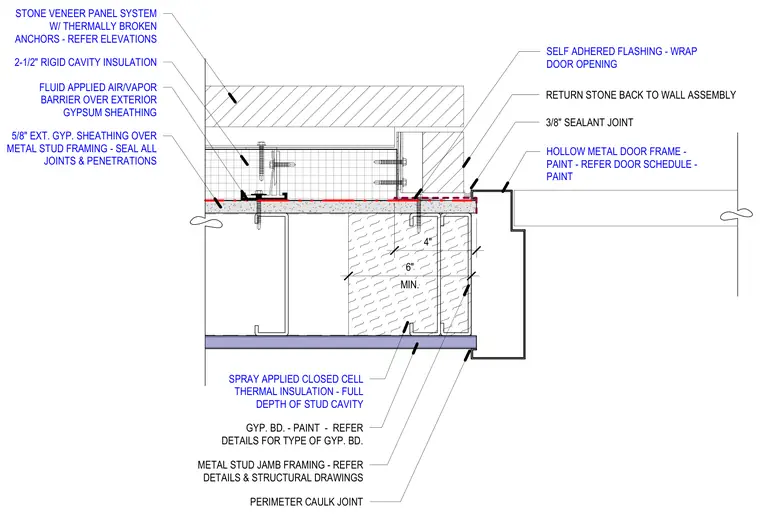

A hollow metal door frame connects to metal stud jamb framing finished with painted gypsum board. The exterior wall assembly consists of metal studs packed with four to six inches minimum of spray-applied closed-cell thermal insulation, covered by exterior gypsum sheathing and a fluid-applied air and vapor barrier. A two-and-a-half-inch rigid cavity insulation layer supports a stone veneer panel system anchored with thermally broken connections. Self-adhered flashing wraps the door opening, and the stone returns back to the wall assembly with a three-eighths-inch sealant joint at the frame interface.
HOLLOW METAL DOOR FRAME - PAINT - REFER DOOR SCHEDULE - PAINT 3/8" SEALANT JOINT METAL STUD JAMB FRAMING - REFER DETAILS & STRUCTURAL DRAWINGS GYP. BD. - PAINT - REFER DETAILS FOR TYPE OF GYP. BD. PERIMETER CAULK JOINT 4" MIN. 6" SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING 2-1/2" RIGID CAVITY INSULATION RETURN STONE BACK TO WALL ASSEMBLY 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS SELF ADHERED FLASHING - WRAP DOOR OPENING STONE VENEER PANEL SYSTEM W/ THERMALLY BROKEN ANCHORS - REFER ELEVATIONS
