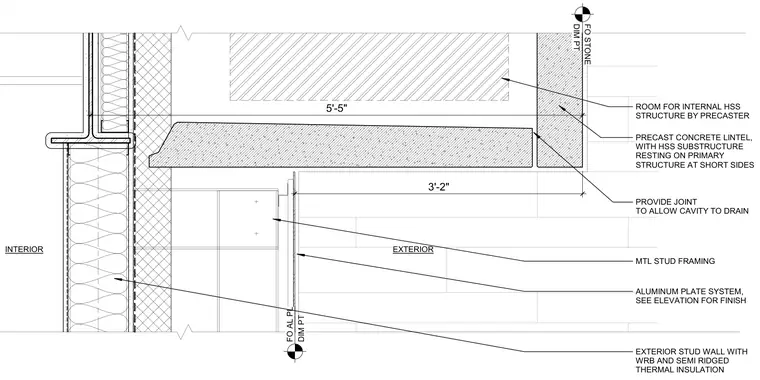

An exterior stud wall features water-resistive barrier and semi-rigid thermal insulation backing an aluminum plate system. A precast concrete lintel incorporates an internal hollow structural section substructure resting on the primary structure at its short sides, with a joint provided to allow the cavity to drain.
PRECAST CONCRETE LINTEL, WITH HSS SUBSTRUCTURE RESTING ON PRIMARY STRUCTURE AT SHORT SIDES ROOM FOR INTERNAL HSS STRUCTURE BY PRECASTER PROVIDE JOINT TO ALLOW CAVITY TO DRAIN EXTERIOR INTERIOR 5'-5" FO AL PL DIM PT EXTERIOR STUD WALL WITH WRB AND SEMI RIDGED THERMAL INSULATION ALUMINUM PLATE SYSTEM, SEE ELEVATION FOR FINISH MTL STUD FRAMING FO STONE DIM PT 3'-2"
