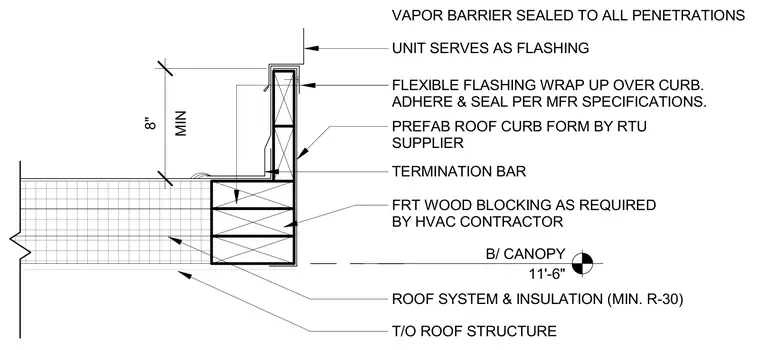

A prefabricated roof curb supplied by the rooftop unit manufacturer rests on fire-retardant treated wood blocking as required by the HVAC contractor. The roof system incorporates a minimum R-30 insulation layer over the roof structure. Flexible flashing wraps up over the curb and is secured with a termination bar, adhered and sealed per manufacturer specifications. A vapor barrier is sealed to all penetrations, and the unit serves as flashing with an eight-inch minimum height above the canopy.
UNIT SERVES AS FLASHING FLEXIBLE FLASHING WRAP UP OVER CURB. ADHERE & SEAL PER MFR SPECIFICATIONS. FRT WOOD BLOCKING AS REQUIRED BY HVAC CONTRACTOR TERMINATION BAR ROOF SYSTEM & INSULATION (MIN. R-30) T/O ROOF STRUCTURE MIN 8" B/ CANOPY 11'-6" PREFAB ROOF CURB FORM BY RTU SUPPLIER VAPOR BARRIER SEALED TO ALL PENETRATIONS
