Architectural · A-DZ3TB

Curtain Wall Sill and Floor Slab Transition Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

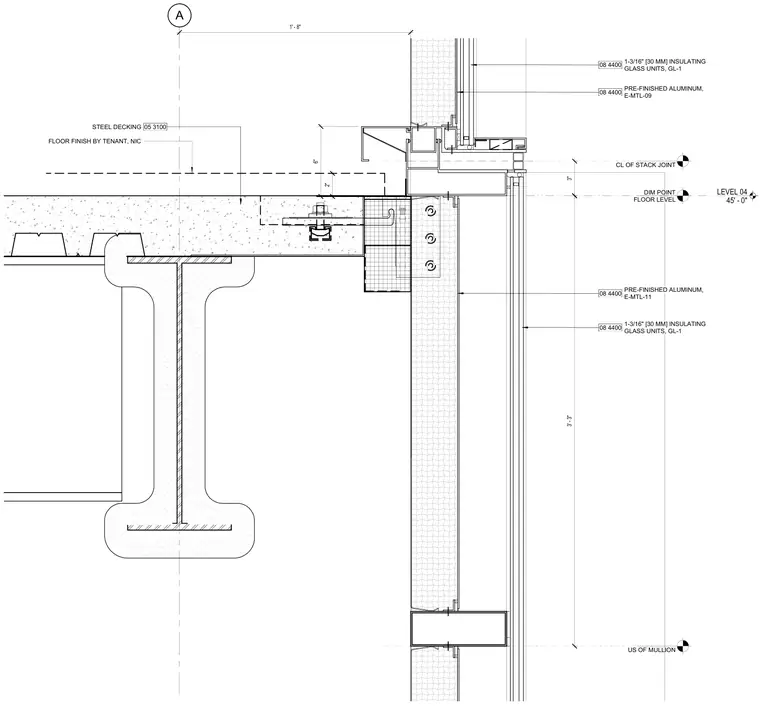

A pre-finished aluminum curtain wall mullion sits at the edge of a concrete floor slab cast over steel decking, supported by a wide flange steel beam. One-and-three-sixteenth-inch insulating glass units fit into the pre-finished aluminum framing. A stack joint aligns with the floor level, and floor finishes are by the tenant, not in contract. The slab edge features embedded anchor channels and reinforcing hardware connecting to the mullion assembly.
